| Amp |
Pris |
Tap
Watt |
Type (Tegningsnr) |
Kjoleflens type
Halvleder type |
Max
dimmensjoner |
Beskrivelse |
Filtype |
|
| |
|
|
BF Type

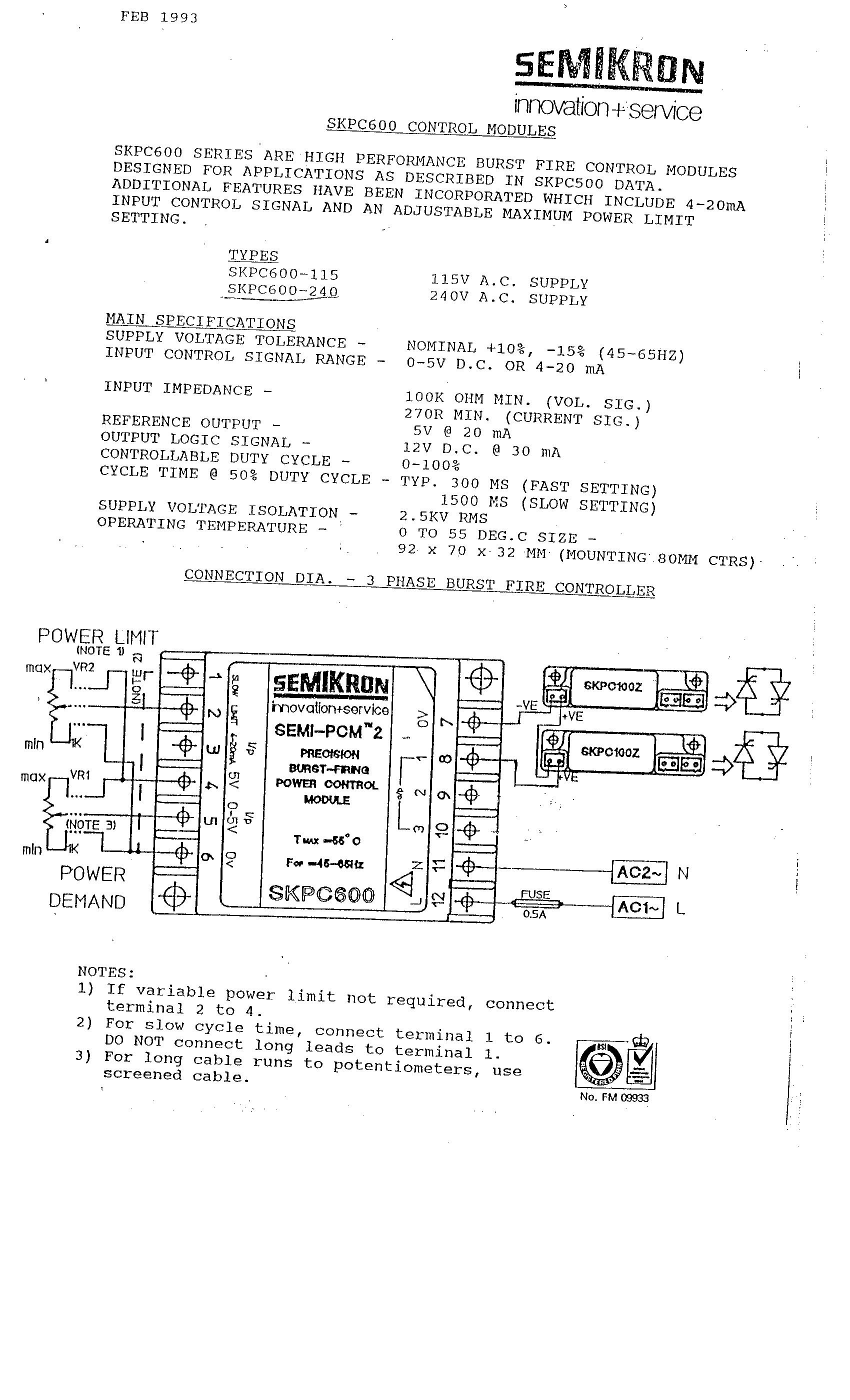

SKPC600-240V
( SKPC600-240 ) |
|
|
Varenr. 16-32 |
jpg |
525 kB |
| |
|
|
EMC-Protection
3 x 0,5 uF
3 x 850V ac |
11-pinn plugkapsel
m/sokkel
0,275 kg |
B=45
H=82
D=135 |
Varenr.12-33 |
|
0 bytes |
| |
|
|
Internal Wiring-diagram for all our 700V TRIAC
(W13-96020Z) |
|
|
|
pdf |
42 kB |
| 15 |
|
40 (80) |
W 2C 700V15A /40A (F)+OPT+BF
(W13Z70-15) |
Al-L
2 kg
PSKT94/22io1 |
B=130
H=270
D=120 |
Varenr. 14-256
M5 tilk. |
pdf |
57 kB |
| 15 |
|
40 (80) |
W 2C 700V15A /40A (F)+OPT24Vdc
(W13Z70-15 iso) |
Al-L
2 kg
PSKT94/22io1 |
B=130
H=270
D=120 |
Varenr. 14-255
M5 tilk. |
pdf |
57 kB |
| 25 |
|
60 |
W 2C 700V25A +O PT+B F
(W13Z70-25) |
Al-U
2,6 kg
PSKT94/22io1 |
B=155
H=300
D=145 |
Varenr. 14-257
M5 tilk. |
pdf |
63 kB |
| 38 |
|
80 |
W 2C 700V38A +O PT+B F
(W13Z70-38) |
P14/300
3,1 kg
PSKT94/22io1 |
B=155
H=300
D=155 |
Varenr. 14-258
M5 tilk. |
pdf |
59 kB |
| 60 |
|
125 |
W 2C 700V60A +OPT+BF
(W13Z70-80) |
1xP3/200
4,5 kg
PSKT94/22io1 |
B=225
H=200
D=215 |
Varenr. 14-260
M5 tilk. |
pdf |
58 kB |
| 80 |
|
170 |
W 2C 700V80A +OPT+BF
(W13Z70-80) |
1xP3/200
5,6 kg
PSK T161 / 22io1 |
B=275
H=200
D=215 |
Varenr. 14-261
M6 tilk. |
pdf |
58 kB |
| 200 |
|
450 |
W 2C700V200AF+OPT+BF
(W13Z70-200) |
1xP3/200F
6 kg
PSK T161 / 22io1 |
B=275
H=250
D=215 |
Varenr. 14-263
M6 tilk. |
pdf |
56 kB |
| 400 |
|
920 |
W 2C700V400AF+OPT+BF
(W13Z70-400) |
2xP3/200F
11 kg
PSKT224 /22io1 |
B=300
H=250
D=230 |
Varenr. 14-267
M8 tilk. |
pdf |
57 kB |
